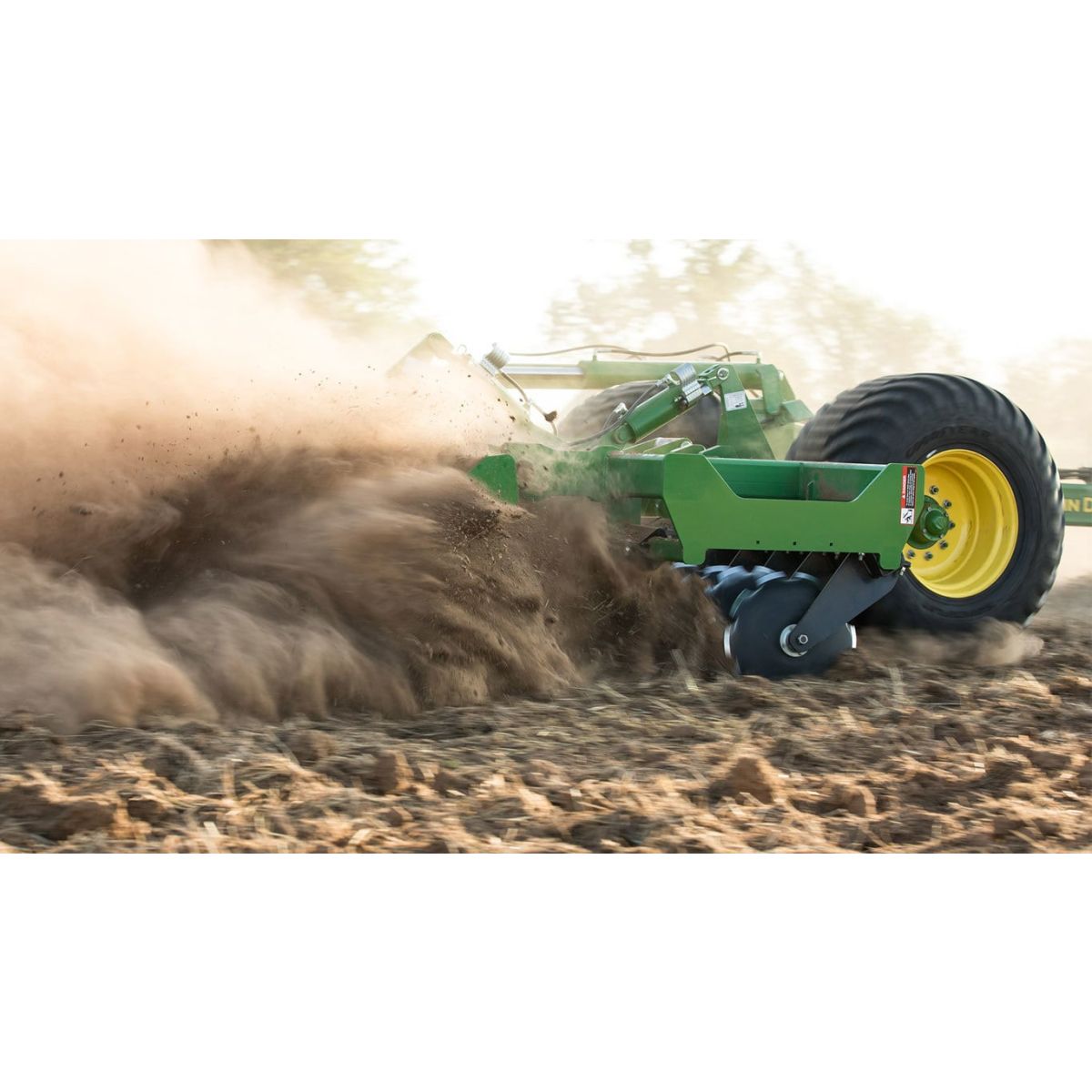

2680H
High Performance Disk
- Cover more hectares at 16-22.5 km/h
- Mix and bury residue for faster breakdown
- Individually mounted blades
- Provides a consistent field finish
Features
Wide range of working widths available to match acreage and power requirements
Integral three-point rigid machine The 2680H High-Performance Disk gives operators the ability to cover acres quickly, increasing their productivity. This two-season tool can operate up to 22.5 km/h (14 mph) in field.
This tool is available in six configurations from 2.5 m to 3.6 m (8 ft, 4 in. to 11 ft, 8 in.). The 2680H requires 34.25 kW/m (14 hp/ft), but in certain hilly, soft, or wet conditions it may require an additional 25 percent engine horsepower to maintain operating speeds at preferred working depth.
Integral three-point rigid models
| Working width | Productivity per hour at 18.5 km/h (11.5 mph)* |
| 2.5 m (8 ft, 4 in.) | 4.7 ha (11.6 acres) |
| 3.05 m (10 ft) | 5.6 ha (13.9 acres) |
| 3.6 m (11 ft, 8 in.) | 6.6 ha (16.3 acres) |
One-section drawn models
| Working width | Productivity per hour at 18.5 km/h (11.5 mph)* |
| 2.5 m (8 ft, 4 in.) | 4.7 ha (11.6 acres) |
| 3.05 m (10 ft) | 5.6 ha (13.9 acres) |
| 3.6 m (11 ft, 8 in.) | 6.6 ha (16.3 acres) |
Individually mounted blades
Individually mounted blades
Rubber torsion elements The 2680H High-Performance Disk features individually mounted blades. These blades, supported by rubber torsion elements, can travel up to 22.9 cm (9 in.) while passing over an obstruction, like a rock. This allows the rest of the tool to remain engaged and continue working, allowing for better ground contour.
Keep the tool engaged while passing over obstructions Blades are also easy to replace. Rather than having to remove an entire gang, just replace an individual blade.
Rear attachment options to match the operation
Cage roller
Spring roller
Rubber roller Producers can choose from three rear attachment options to match their operation. Options include a cage roller, spring roller, and rubber roller.
The cage roller is the most versatile option. Choose this rear attachment if the primary application is fall tillage. It works in all soil types and conditions and has a diameter of 64.8 cm (25.5 in.).
The spring roller is the most specialized. It works in light/medium soils and can provide a level seedbed with additional firming. Individually mounted tines work to prevent plugging of the roller. Avoid using it in rocky ground. It has a diameter of 62.2 cm (24.5 in.).
The rubber roller is best for firming and preparing a seedbed in the spring. It works best in lighter drier soils where a firm finish and anchored residue is a primary concern. This rear attachment works in most soil types and features a hydraulically adjustable scraper. It has a diameter of 63.5 cm (25 in.).
Model year 2027 new tool offerings
HSD Series Starting in model year 2027, two-section 2680H’s will no longer be available to order. All two-section 2680H’s will be replaced with the two-section HSD Series, in widths ranging from 15 to 25 ft. Integral three-point and drawn one-section 2680H models will still be available to order.
2680H integral three-point models | 2680H drawn one-section models |
· 8 ft, 4 in. · 10 ft. · 11 ft, 8 in. | · 8 ft, 4 in. · 10 ft. · 11 ft, 8 in. |
MY26 2680H widths vs MY27 HSD Series widths
MY26 2680H widths (two-section) | MY27 HSD Series widths (two-section) |
· 15 ft, 11 in · 17 ft, 7 in · 20 ft, 11 in · 24 ft, 4 in | · 15 ft · 19 ft · 22 ft · 25 ft (two-section) |
