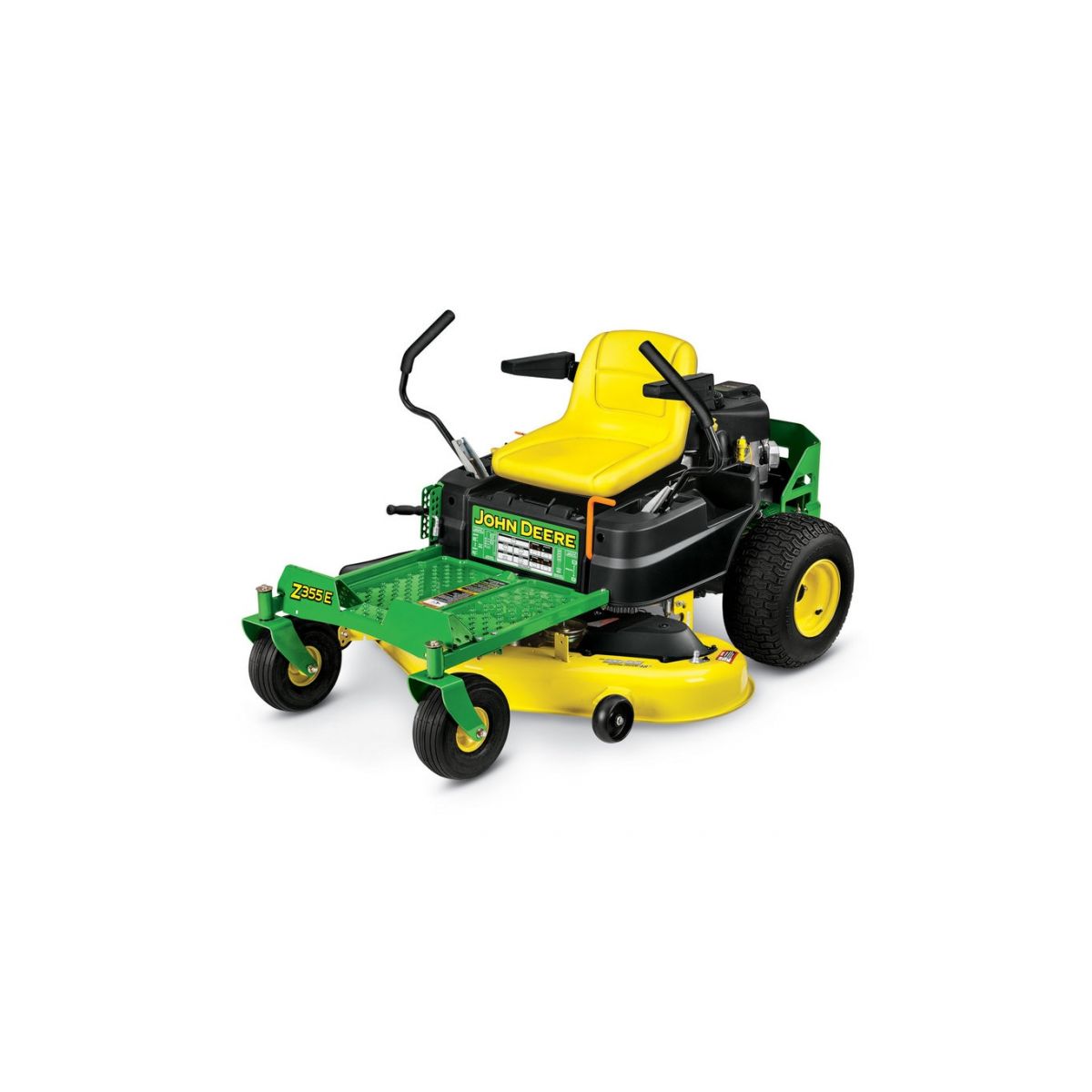

Residential ZTrak™ Mower
ZTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability.
Large front caster wheels and large rear drive wheels provide several operator benefits:
The operator platform is roomy and uncluttered for maximum comfort, and the controls are convenient to use:
A 22-hp (16.4-kW) V-twin engine with 44.2-cu in. (724-cc) displacement provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:
The Z525E engine has extended life series (ELS) features for enhanced performance and longer life.
Replaceable fuel filter and oil filter are easy to access and change to minimize service time and cost.
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz) for more information
The operator station is designed for operator comfort and convenience when operating all controls:
Comfortable seats make the operator experience more pleasant. Armrests, included on the Z355E seat, can be flipped up out of the way, if desired:
Large foot platform helps the operator remain comfortable and secure:
Two steel coil suspension springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride.
The seat has a 2.5-in. (6.35-cm) fore-aft adjustment. The cut-height pin/socket can be used to loosen the bolts in order to make seat adjustments.
The cup holder is designed to hold two common cup sizes securely.
Covered storage under the seat and open storage along the left side of the vehicle provide safe and secure places for the operator to keep safety equipment, a cell phone, etc.
The motion-control levers can be adjusted to two height settings and nine fore-aft settings for a total of 18 different positions:
A standard shock absorber for the motion-control levers makes maneuvering ZTrak™ Mowers easy and comfortable:
On-board tracking adjustment from the operator seat is quick and easy. The cut-height pin includes a 13-mm wrench and doubles as a convenient tool for adjusting tracking and the motion-control lever position.
The operator control panel is conveniently located and easy to use. The following instruments and controls are included:
The park brake is conveniently located:
A convenient service interval decal provides basic maintenance information. It provides a quick-reference for keeping recommended service up to date.
The footrest area is hinged and easily raised for service to mower deck:
The engines are easy to service, including changing the oil and the oil filter and servicing the air filter.
Accel Deep™ Mower Decks have several features that make them easy to service:
Tie-down locations are provided for convenience and safety when trailering the machine.
The 48-in. (122-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds:
Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
A wash port is provided to make cleaning the underside of the mower deck easy.
MulchControl is an innovative, simple design that is easy to use and maintain:
Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:
Large discharge opening is both high and wide to handle more material:
The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:
The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:
Mower wheels are double-captured:
Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.
The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
The 48A Mower is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
The MulchControl attachment for the 48A Mower Deck makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:
An optional 6.5-bu (230-L) Power Flow Rear Bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves:
MulchControl is well-suited to the following mowing situations:
MulchControl puts the operator in control of the clippings. Now the operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.
While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
