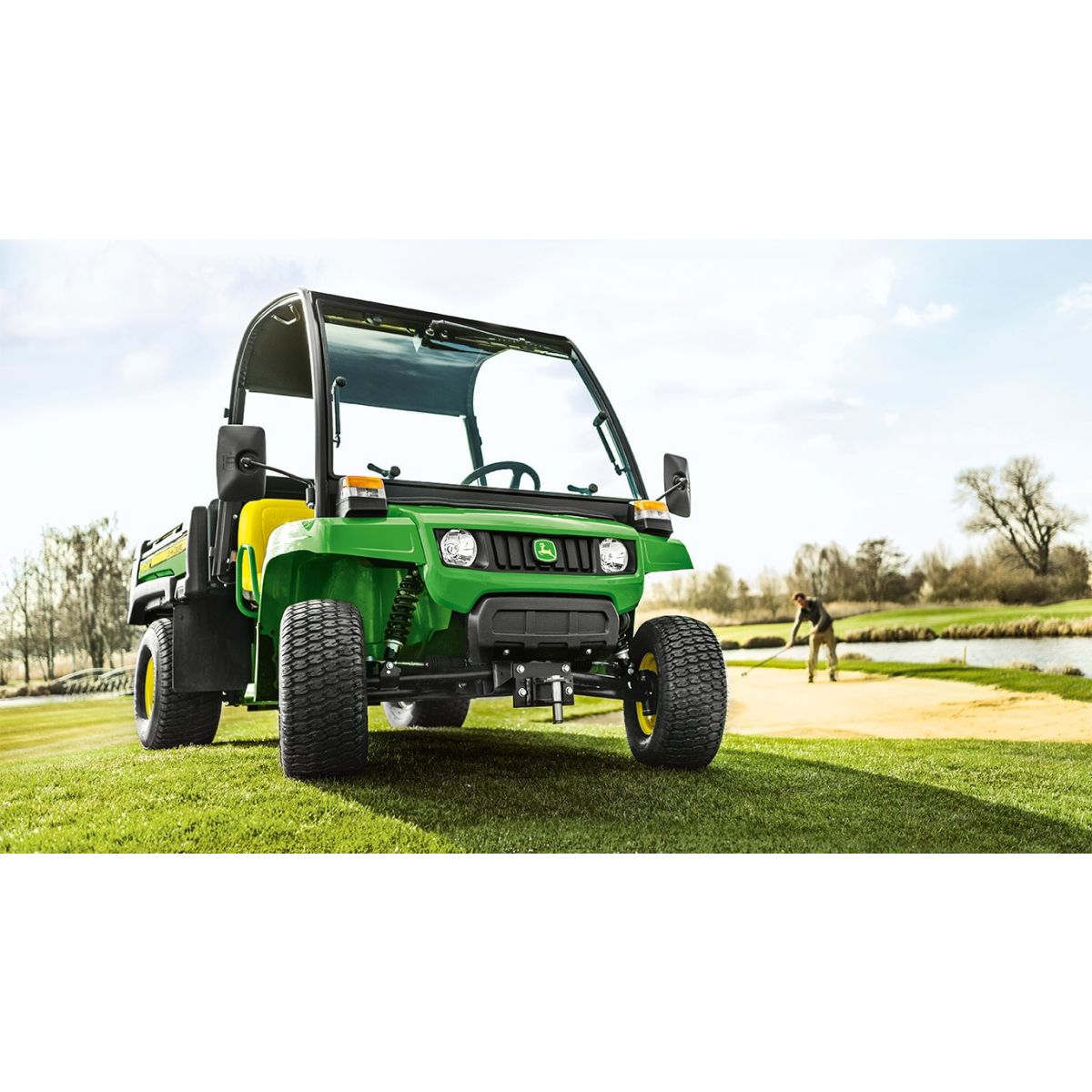

TE 4x2 Electric

Deluxe cargo box (TX shown)

Deluxe cargo box, tailgate lowered (TX shown)

The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust, dents, and reduces noise. The cargo box floor and front panel are made of steel.

Deluxe cargo box tailgate

Tailgate handle

Tailgate lowered to 150 degrees

The tailgate can be opened or removed to ease clean out and to carry longer items. The tailgate features truck-like performance and can be operated with one hand.

The standard installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.

Deluxe cargo box tilt

Lift handle with integrated latch (TX, TX Turf, and TE vehicles)

Latch (A) and lift handle (B) (TH vehicles)

The deluxe cargo box is easy to latch, unlatch, raise, and lower using a handle that’s built into the cargo box.

• On TX, TX Turf, and TE vehicles the cargo box latch is integrated into the lift handle.
• On TH vehicles, the cargo box latch is located on the front of the cargo box.

Gas assist (A) and prop rod (B) (TX shown)

A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.

Integrated tie-down points

Integrated tie-down point in cargo box bed

Additional tie-down points (TH shown)

The deluxe cargo box offers integrated tie-down points for increased versatility. Tie down points are located in the following areas:

• Four corners inside the cargo box bed
• Four points on the load guard directly behind the operator station (A)
• Tie-down bars on either side of the cargo box (B)
• Six points on the underside of the cargo box frame (circled)

Converting deluxe cargo box to a flat bed

Deluxe cargo box converted to a flatbed (TX shown)

Haul larger cargo on the flat bed (XUV825i shown)

The deluxe cargo box easily converts to a flatbed by removing ten bolts and unplugging rear lights (if equipped) at the harness pigtail at the rear of the machine. The flatbed configuration allows loading larger and irregularly shaped cargo.

Comfort and convenience packages

T-Series vehicles are ordered with a comfort and convenience package, which includes factory-installed optional equipment.

Optional accessories

Cargo box power lift

Bed mat protects the steel floor from dents

Attachments for field conversion are also available to upgrade lighting and add equipment. Optional accessories for the deluxe cargo box include:

• Cargo box bed mat
• Cargo box power lift
• Side tool rack
• Cargo box divider
• 5-gal. (19-L) bucket holder
• Cargo box extender
• Cargo box side extensions
• Taillight protectors
• Side- and top-opening toolboxes
• Lighting kits

Cargo box specifications

CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
